7 W MONO AUDIO AMPLIFIER
€8.95
Availability: In stock or 3 working days
SKU
VL_WSAH4001

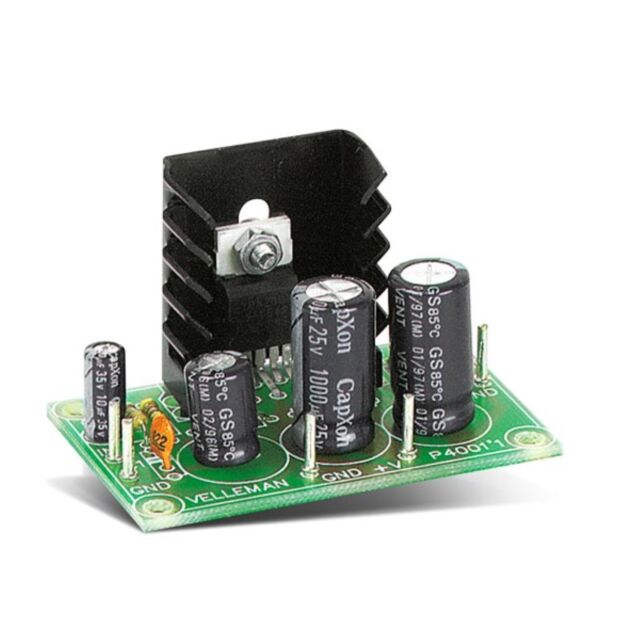

This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4 ohms. The IC is fully protected against overheating and short circuits. A conventional direct current is sufficient as power supply.
| Height | 15.500000 |
|---|---|
| External Id | WSAH4001 |
| EAN | 5410329733155 |
| Packaging | Boîte |
| Width | 7.800000 |
| Depth | 3.800000 |
Product basic info
- Instruction manual languages: Dutch, English, French, German, Spanish
- Primary colours: Green
- Additional colours: Grey
- Additional detailed colours: Metallic silver
- Depth unit: 35 mm
- Width unit: 55 mm
- Weight unit: 42 g
Technical data
- Specifications kits & modules: <ul><li>music power output: 7 W / 4 Ohm</li><li>RMS output: 3.5 W / 4 Ohm or 2 W / 8 Ohm</li><li>total harmonic distortion: 0.05 % (1 W / 1 kHz)</li><li>frequency response: 20 Hz to 20 kHz (-3 dB)</li><li>signal-to-noise ratio: 86 dB (A-weighted)</li><li>input sensitivity: 40 mV / 150 KOhm</li><li>overload and short-circuit protected</li><li>supply voltage: 15 VDC (8 to 18 VDC possible) / 0.5 A</li></ul>
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: none
- Electronics skill level: 1
- Mechanics skill level: 1
- Soldering skill level: 2
