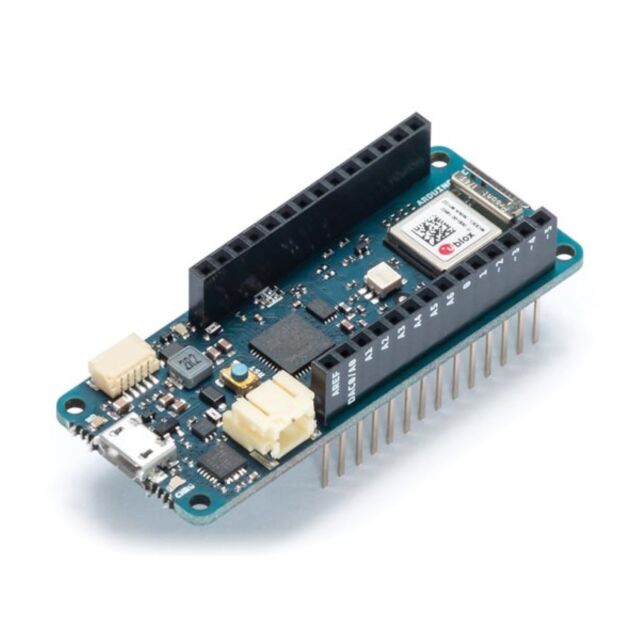

ARDUINO® MKR WIFI 1010
€49.95
Availability: In stock or 3 working days
SKU
VL_ARD-ABX00023
The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It's equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.
| Height | 2.500000 |
|---|---|
| External Id | ARD-ABX00023 |
| EAN | 7630049200258 |
| Packaging | Boîte |
| Width | 8.200000 |
| Depth | 6.000000 |
| Customer reference | lefbvre c.56179 |
Product basic info
- Primary colours: Blue
- Additional colours: Black
- Depth unit: 25 mm
- Width unit: 61.5 mm
- Weight unit: 32 g
- Material: Epoxy
Technical data
- Operating voltage: 3.3 V
- Analog input pins: 7
- Analog input pins type: ADC 8/10/12 bit
- Analog output pins: 1
- Analog output pins type: DAC 10 bit
- Built-in LED's: 6
- Clock speed: 48 MHz
- Clock speed RTC: 32768 kHz
- DC current per i/o pins: 7 mA
- External interrupts: 10
- External interrupts type: 1, 16/A1, 17/A2, 4, 5, 6, 7, 8, 9
- Flash memory: 256 kB
- I2C: 1
- PWM pins: 13
- PWM pins type: 1, 10, 12, 18/A3, 19/A4, 2, 3, 4, 5, 6, 7, 8
- Radio module: u-blox NINA-W102
- Secure element: ATECC508
- SPI: 1
- SRAM: 32 kB
- Supported battery: Li-Po Single Cell, 3.7V, 1024mAh Minimum
- Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM® MCU
- UART: 1
Connections
- Digital I/O pins: 8
IT connections
- USB type: Full speed USB device and embedded host
Power supply
- Input voltage rating range: 5 V
