Discrete power amplifier - 200 W
€22.95
Availability: In stock or 3 working days
SKU
VL_WSAH8060

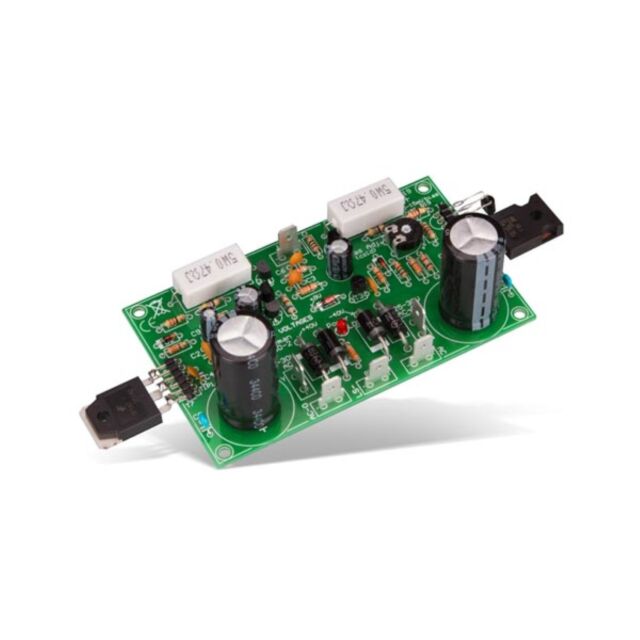

200 W power amplifier Excellent value for money. Fully discrete design with epitaxial Darlington transistors. DC supply circuit with LED indication. Ideal for active speaker systems or subwoofers, guitar amps, home theatre systems, etc. 200 W music power @ 4 ohms. 100 W rms power @ 4 ohms. 70 W rms power @ 8 ohms. Distortion: 0.02 % @ 1 kHz/10 W. Frequency response: 3 Hz to 200 kHz (-3 dB). S/R ratio: 115 dB. Power supply: 2x 25-30 VAC/120 VA. Dimensions PCB: ± 107 x 62 mm. Recommended transformer: 12030. Recommended heatsink: HSVM100 (pre-drilled) or S44/75 (not pre-drilled).
| Height | 15.500000 |
|---|---|
| External Id | WSAH8060 |
| EAN | 5410329730437 |
| Packaging | Boîte |
| Width | 15.800000 |
| Depth | 3.800000 |
Product basic info
- Instruction manual languages: Dutch, English, French, German, Spanish
- Primary colours: Green
- Additional colours: Red
- Depth unit: 107 mm
- Width unit: 62 mm
- Weight unit: 140 g
Technical data
- Specifications kits & modules: <ul> <li>200 W music power @ 4 Ohm load</li> <li>100 Wrms power @ 4 Ohm load</li> <li>70 Wrms power @ 8 Ohm load</li> <li>distortion: 0.02 % @ 1 kHz / 10 W</li> <li>damping factor: >, 800</li> <li>frequency response: 3 Hz to 200 kHz (-3 dB)</li> <li>sensitivity: 0.6 Vrms</li> <li>signal-to-noise ratio: 115 dB</li> <li>power supply: 2 x 25 - 30 VAC / 120 VA</li> <li>recommended heatsink: HSVM100</li> <li>recommended power transformer:</li> <ul> <li>230 VAC input, 2 x 30 VAC output</li> <li>115 / 230 VAC input, 2 x 25 VAC output (output power reduced by ± 15 %)</li> </ul> </ul>
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: none
- Electronics skill level: 2
- Mechanics skill level: 2
- Soldering skill level: 2
