EARTH LISTENER
€149.90
Availability: In stock or 3 working days
SKU
VL_WMMI211

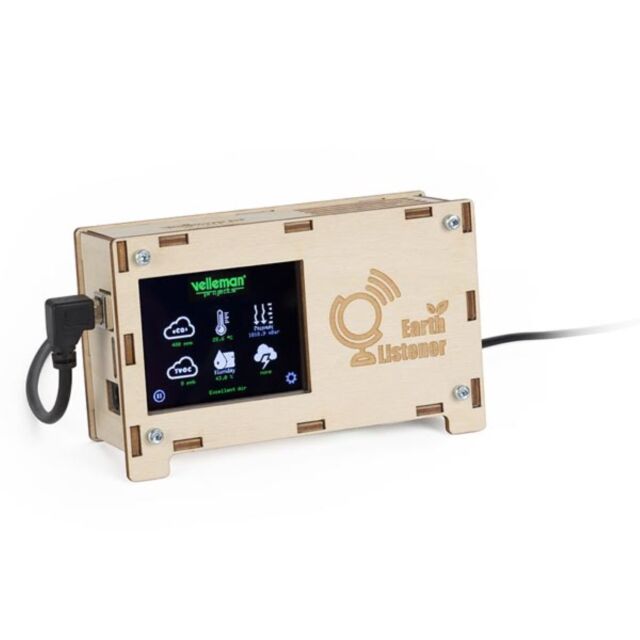

Ever wondered how good the air quality is in your living room? Or do you need proof of why you fall asleep in a non-ventilated meeting room after 3 hours? Look no further! This DIY experimental kit has all the answers! The Earth Listener is an Arduino based sensor device that reads multiple environmental values to indicate the air quality. This kit is assembled in 15 minutes and you don't need a soldering iron! Just connect the parts and wires, put everything in the case and connect it to a 5V USB socket. The Mega development board is pre-programmed and shows eCO2, TVOC (particles in the air), barometric pressure, temperature and humidity values onto the TFT touchscreen. To top thing off, the Earth Listener also contains a lightning detection sensor. If lightning (or electronic discharge) is detected, the Earth Listener will give an alarm tone and log how far the lightning is located. Since everything is open source, you can add an additional 6 sensors to the Earth Listener via the sensor shield. Logging is possible via the micro SD card (not included). *Arduino compatible 3 colour RGB SMD LED module not included:
| Height | 15.500000 |
|---|---|
| External Id | WMMI211 |
| EAN | 5410329729363 |
| Packaging | Boîte |
| Width | 18.000000 |
| Depth | 5.800000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Brown
- Primary detailed colours: Wood
- Depth unit: 13.5 cm
- Height unit: 8.4 cm
- Width unit: 4.1 cm
- Weight unit: 215 g
Technical data
- Specifications kits & modules: <ul> <li>measures eCO2, TVOC, barometric pressure, temperature and humidity</li> <li>detects lightning or electronic discharge</li> <li>2.8-inch color touch screen</li> <li>logging function on SD card (SD not included)</li> <li>hardware with pre-programmed software for a plug-and-play, ready-to-use experience</li> <li>open source and fully Arduino based, easy to expand and modify</li> <li>stylish wooden enclosure or special edition see-through plexi case (VM211SE)</li> <ul></ul></ul>
- Specifications extra kits & modules: <ul> <li>development board: <ul> <li>microcontroller: ATmega2560</li> <li>operating voltage: 5 VDC (USB) – power supply not included, 2m USB cable included</li> <li>free pins after build: 30 digital / 5 analog</li> </ul> </li> <li>touch screen:<br> <ul> <li>TFT resolution: 320 x 240</li> <li>TFT colour depth: 262 000 colour</li> </ul></li></ul>
- Specifications extra extra kits & modules: <ul> <li>CCS811 sensor: <ul> <li>TVOC sensing 0 to 1,187 ppb</li> <li>eCO2 sensing from 400 to 8,192 ppm</li> <li>I2C compatible interface</li> </ul> </li> <li>BME280 sensor: <ul> <li>temperature: -40°C to 85°C</li> <li>humidity: 0-100% RH, =-3% from 20-80%</li> <li>pressure: 30,000 Pa to 110,000 Pa, relative accuracy of 12 Pa, absolute accuracy of 100 Pa</li> <li>altitude: 0 to 9.2 km (30.000 feet), relative accuracy of 1 m (3.3 feet) at sea level, 2 m (6.6) at 9,2 km (30.000 feet)</li> </ul> </li> <li>enclosure: , <ul> <li>laser cut wood</li> <li>plexi enclosure (VM211SE)</li> </ul> </li> <li>AS3935 sensor: <ul> <li>distance estimation to the head of the storm in 15 steps</li> <li>detects both cloud-to-ground and cloud-to-cloud flashes</li> <li>SPI and I2C compatible interface</li> </ul> </li></ul>
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: 2
- Electronics skill level: 2
- Mechanics skill level: 2
- Soldering skill level: none
- Module LED RGB SMD avec puce 5050 pour projets Arduino (5410329729905)
- Pour des mesures eCO² et TVOC stables, le Earth Listener nécessite une période d'initialisation de 48 heures et au moins 20 minutes d'enregistrement.
- Ce kit d'expérimentation est conçu uniquement à des fins indicatives. L'interprétation des données collectées doit prendre en compte les conditions spécifiques de l'environnement. Une bonne ventilation de votre espace de vie est essentielle.
