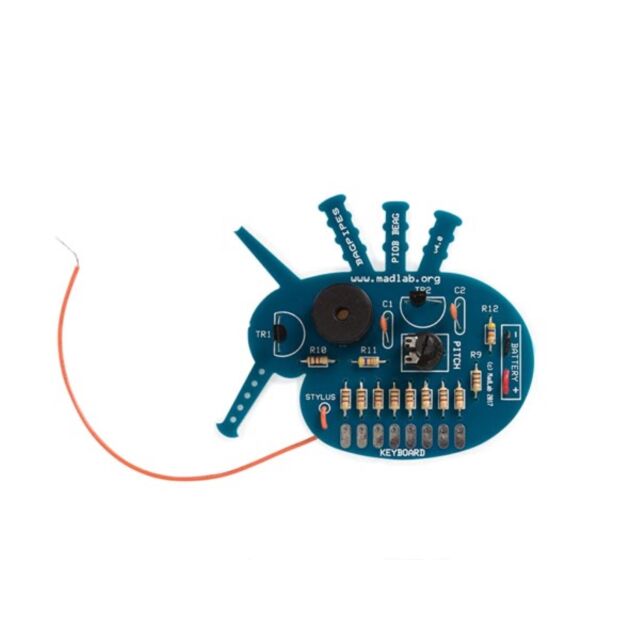

MADLAB ELECTRONIC KIT - BAGPIPES
€9.90
Availability: In stock or 3 working days
SKU
VL_WSG104
Bagpipes is an audio oscillator kit similar to the MadLab Electronic Kit - Wonky Wire. The Bagpipes kit is, however, capable of producing eight different tones from about 5kHz (5000 cycles per second) down to about 300Hz. To use the Bagpipes, the stylus wire is moved up and down the network of resistors R1 to R8 which make up the keyboard. The voltage at the end of the stylus changes as each keyboard resistor is touched in turn.
| Height | 15.500000 |
|---|---|
| External Id | WSG104 |
| EAN | 5410329725891 |
| Packaging | Boîte |
| Width | 7.500000 |
| Depth | 3.500000 |
Product basic info
- Primary colours: Blue
- Depth unit: 60 mm
- Height unit: 16 mm
- Width unit: 60 mm
- Weight unit: 38 g
Technical data
- Specifications kits & modules: power supply: 9 V battery (not incl.)
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: none
- Electronics skill level: none
- Mechanics skill level: none
- Soldering skill level: none
