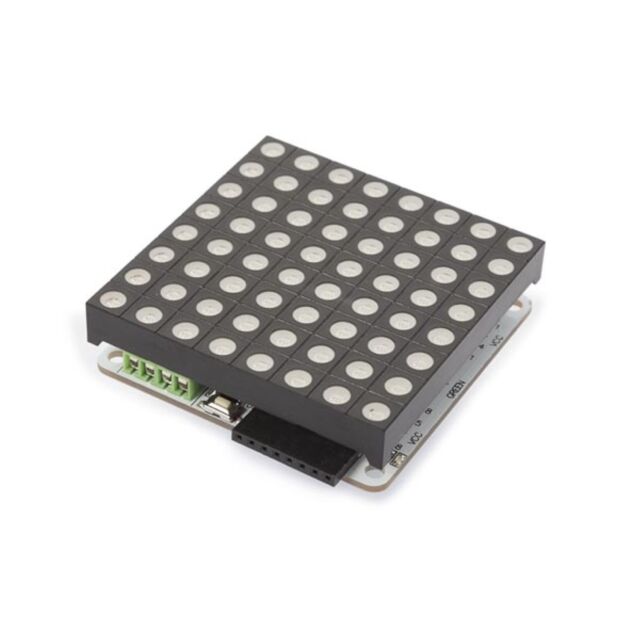

RGB DOT MATRIX BOARD & DRIVER BOARD BASED ON ATMEGA328
€34.90
Availability: In stock or 3 working days
SKU
VL_WPB439
This Arduino based (ATmega328P) RGB LED matrix driver platform based gains three 8+6-bit channels of hardware PWM control thanks to its LED driver. Its design allows you to easily change or write firmware using the Arduino IDE.
| Height | 12.000000 |
|---|---|
| External Id | WPB439 |
| EAN | 5410329729325 |
| Packaging | Boîte |
| Width | 7.500000 |
| Depth | 3.500000 |
Product basic info
- Instruction manual languages: English
- Primary colours: Black
- Additional colours: White
- Depth unit: 7.5 cm
- Weight unit: 56 g
Technical data
- Specifications kits & modules: Features <ul> <li>8 bits colours support with 6 bits correction for each colour in every dots</li> <li>hardware 16 MHz PWM support</li> <li>without any external circuits, play and shine</li> <li>dedicated GPIO and ADC interface</li> <li>hardware UART and IIC communication with easy cascading</li> <li>24 constant current channels of 100 mA each</li> <li>8 super source driver channels of 500 mA each</li> <li>driver board is based on ATMEGA328 and works with ID</li></ul>
- Specifications extra kits & modules: <ul><li>module dimensions: 60 x 60 x 16 mm</li><li>microprocessor: Atmega328P</li><li>indicator: PWR state</li><li>power supply: 5 to 7.5 VDC</li><li>cascade power connector: terminal blocks</li><li>program interface: UART/ISP (VMA440)</li><li>expansion socket: 100 mil bended pin header pair</li><li>communication protocols: UART/IIC</li><li>current consumption (except LED matrix): max. 40 mA</li><li>drive current (every channel): max. 500 mA</li><li>drive current ( every dot): max. 58 mA</li><li>circuit response time: 10 ns</li><li>RGB LED matrix colour resolution per dot: 16 M</li><li>UART baud rate: 9600 115200</li></ul>
Operational properties
- Coding skill level: 3
- Electronics skill level: 2
- Mechanics skill level: 1
- Soldering skill level: none
