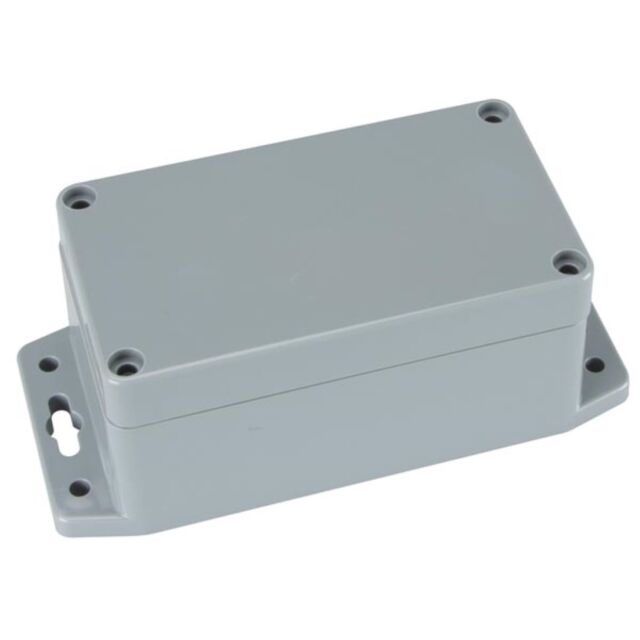

SEALED ABS BOX WITH MOUNTING FLANGE 115 x 65 x 55 mm
€9.95
Availability: In stock or 3 working days
SKU
VL_G308MF
These enclosures consist of high-impact ABS (operating temperature : -20°C to +80°C). The lid and the base are equipped with mounting flange and groove sealing system with a neoprene gasket. The flanged wall mounting holes are designed for M3 self-taping screws. The bosses inside of the base are designed for M2.6 self-taping screws. Internal guide slots for mounting PCB assemblies vertically. Also available with clear lid (on demand).
| Height | 6.500000 |
|---|---|
| External Id | G308MF |
| EAN | 5410329450403 |
| Packaging | Poche |
| Width | 11.500000 |
| Depth | 5.500000 |
Product basic info
- Primary colours: Grey
- Primary detailed colours: Dark grey
- Depth unit: 55 mm
- Height unit: 65 mm
- Width unit: 115 mm
- Weight unit: 141 g
- Material: ABS
Physical properties
- Lid cover: Yes
- Sealed: Yes
Technical data
- Mounting type: Vertical
- Flanges: Yes
Environmental data
- IP rating: IP65
- Operating temperature range: -20-80 °C
- matériau: ABS
- couleur: gris foncé
