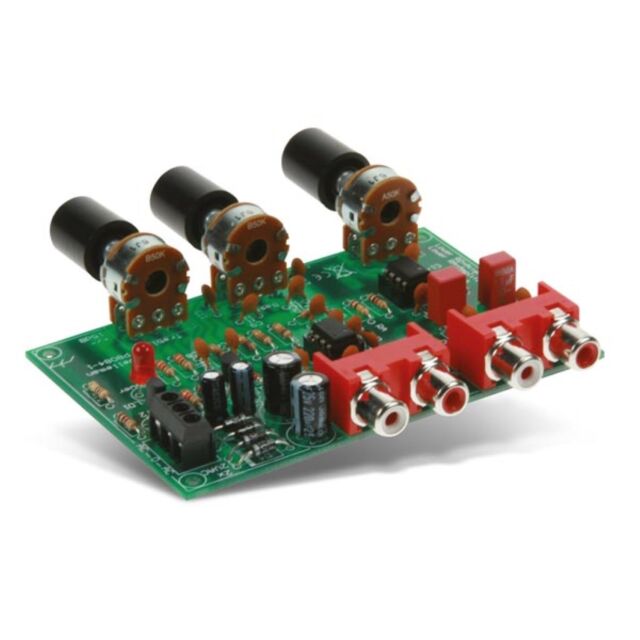

VOLUME AND TONE CONTROL - PREAMPLIFIER
€19.95
Availability: In stock or 3 working days
SKU
VL_WSAH8084
When using one of our amplifiers (big or small), you always need a volume control and preferably also a tone control. This kit comes complete with all input / output connections and potentiometers. Furthermore it is possible to amplify or attenuate the input signal.
| Height | 15.500000 |
|---|---|
| External Id | WSAH8084 |
| EAN | 5410329733216 |
| Packaging | Boîte |
| Width | 15.800000 |
| Depth | 3.800000 |
Product basic info
- Instruction manual languages: Dutch, English, French, German, Spanish
- Primary colours: Green
- Additional colours: Red
- Depth unit: 70 mm
- Width unit: 105 mm
- Weight unit: 115 g
Technical data
- Specifications kits & modules: <ul> <li>supply voltage: 2 x 12 VAC / 100 mA</li> <li>frequency response: 3 Hz - 500 kHz (-3 dB)</li> <li>standard amplification: x 1</li> <li>signal-to-noise ratio: 98 dB</li> <li>total harmonic distortion: <, 0.005 % (@ 1 kHz)</li> <li>maximum output: 5 Vrms</li> <li>tone control:</li> <ul> <li>+ and -15 dB @ 20 Hz</li> <li>+ and -15 dB @ 15 kHz</li> </ul> <li>input impedance: 50 kOhm</li> </ul>
Set-up options
- Self-assembly kit: Yes
Operational properties
- Coding skill level: none
- Electronics skill level: 2
- Mechanics skill level: 1
- Soldering skill level: 2
