BT-LEDROTOR Ventilateur lumineux pour effect visuel fantastique
1 259,00 €

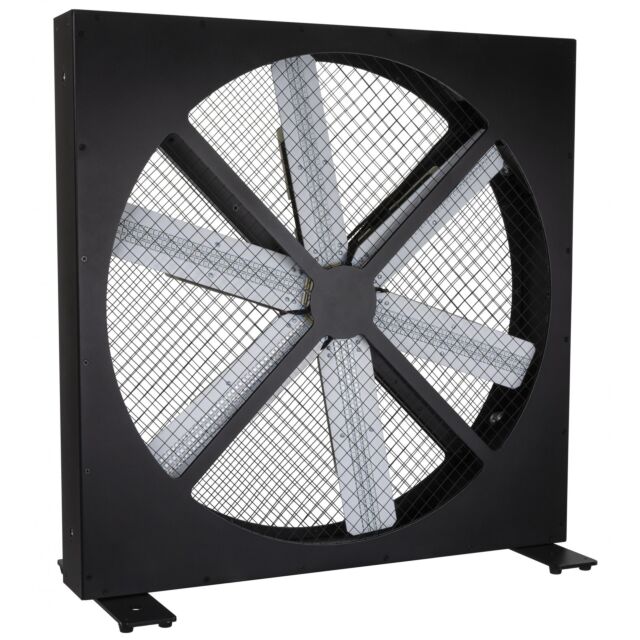

The BT-LEDROTOR is a high power 70x70cm LED-effect-fan for TV-Studios, Rental, …
Each of the 6 fan blades is equipped with 5 sections of RGB-leds that you can control individually.
An additional ring of UV LEDs was added to create extra effects.
Disponibilité : En stock ou 3 jours ouvrables
SKU
JB_BTLEDROTOR
- High power 70x70cm LED-EFFECT FAN
- Use in all kinds of show applications: TV-studios (flicker free), Rental, Discos, …
- The 6 fan blades are equipped with in total 720 RGB-leds
- Each fan blade is split-up in 5 individual RGB-sections (total: 30 pixels)
- The output of each fan blade can be controlled individually!
- Amazing built-in pixels patterns + free pixel programming.
- 32pcs 3W UV-leds light up the white colored blades in the dark!
- There are 3 DMX-modes: 5, 12 and 33 channels
- Very slow to very fast bidirectional fan rotations
- RDM-function for: channel mode, DMX-address, temperature control, …
- OLED display with backlit touch buttons for easy configuration.
- Easy truss installation, thanks to 2 included omega brackets
- Easy floor installation, thanks to 2 included floor stands
- Smart placement of the in/out connectors to assure, almost invisible, cable routing.
- Easy daisy chaining: 3pin & 5pin + Neutrik® PowerCON® in/out
- 100V~240V 50/60Hz Power supply.
- A special 80x60cm flight case for transport of 4 units + cables and accessories is optionally available.
| General : Application | DJ & Club, Stage & Rental |
|---|---|
| General : Dimensions (cm) | 70 x 70 x 10 cm |
| General : Weight (kg) | 20 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 240 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | included omega bracket |
| General : IP rating | indoor |
| Control : manual | No |
| Control : Master/Slave | Yes |
| Control : SMART-DMX | No |
| Control : Standalone | no |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : maximum DMX channels | 33 |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, RGB |
| Light : mix colors | Yes |
| Light : iris | No |
| Light : min. refresh rate (kHz) | No |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, 5 pin XLR, powercon, usb, rdm, Wireless DMX |
| Connections : output | 3 pin XLR, 5 pin XLR, powercon, usb, rdm, Wireless DMX |
